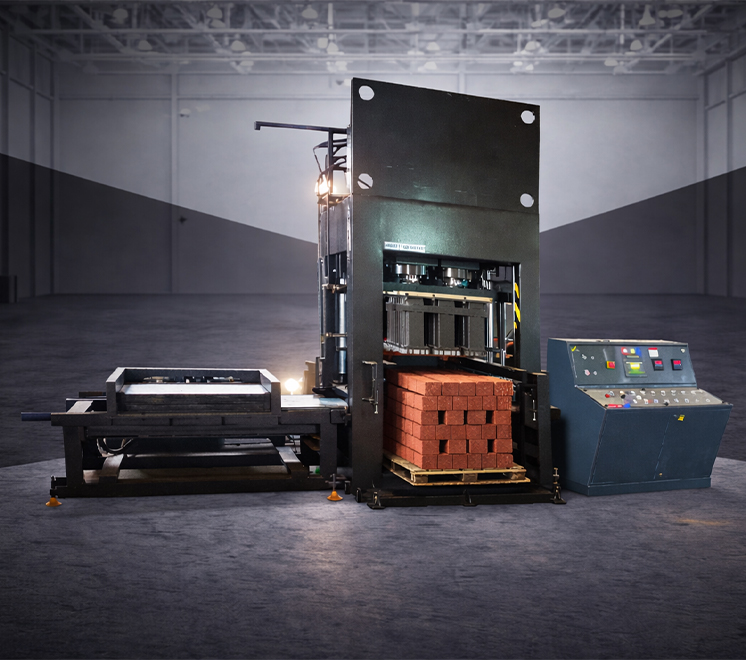

Auto Pallet Stacker System - 12 Bricks

Auto-Pallet-Stacker-System-12
Innovation

Advanced Technology

The Auto Pallet Stacker System – 12 Bricks is designed for efficient and automated brick handling in modern brick manufacturing units. As a trusted Auto Pallet Stacker System Manufacturer in Coimbatore, this system ensures accurate stacking of 12 bricks per cycle, improving productivity and workflow. Equipped with PLC-based automation and a robust hydraulic mechanism, it enables smooth and precise pallet stacking with minimal manual intervention. The system helps maintain uniform brick arrangement while supporting high-volume production. Built with heavy-duty materials and advanced engineering, it integrates easily with fly ash brick machines and automated production lines. Ideal for brick manufacturers and construction industries, it enhances efficiency, reduces labor effort, and ensures reliable performance in large-scale operations.

Technical Specification

MODEL ABMH 8SP SUPER ULTRA AUTO STACKER PALLET 12 Bricks System
Hydraulic Motor 15 H.P/11.25 KW
Heat Exchanger 1H.P/0.75KW
Conveyor System 3 H.P/2.25 KW
Pan mixer Machine 20 H.P/15 KW
Stacker Hydraulic Motor 3 H.P/2.25 KW
Stacker travel motor 3H.P/2.25 KW
Pallet Chain Conveyor 1 H.P/0.75 KW
System Hydraulic Free Fill
Dimension H-2800*W1500*L-2800
Weight Approx 8500 KG
Control PLC
Sliding Rod 63 EN8 Grained Hard Chromed
Sliding Bush Steel Casting
No of Cylinders 6 no’s
Main Cylinder 200*350*140(Double)
Side Cylinder 80*50*350
Ejector Cylinder 50*35*1100
Max Pressure 220+220=440 BAR
Hydraulic Pump Turbo Twin Vain System
Cyclic time 15 Seconds
Ejector Conveyor Hard Polymer easy Changeable
No of Labour only For Production 12
Land 1 Acre
Shed 60’x 100’(Feet)
Water Equipment 10,000 Liters/Shift
