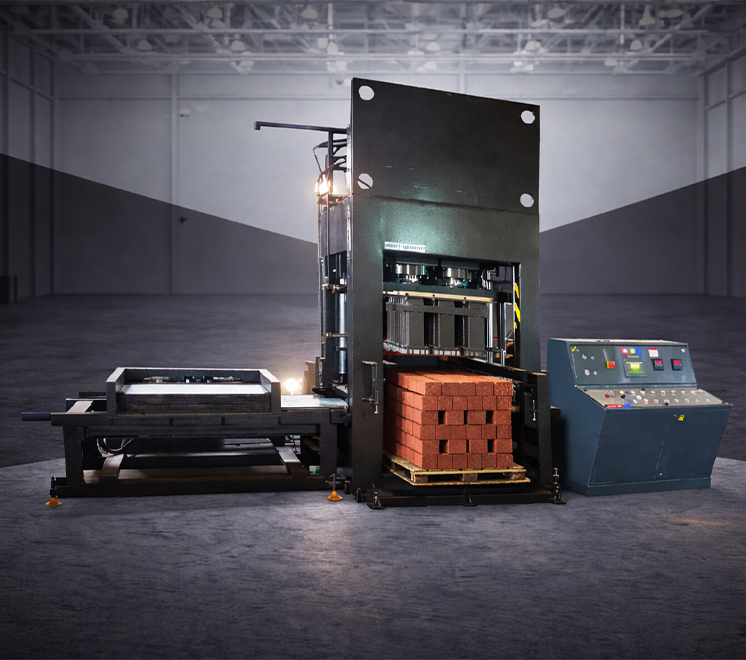

Auto Pallet Stacker System - 15 Bricks

Auto-Pallet-Stacker-System-15
Innovation

Advanced Technology

The Auto Pallet Stacker System – 15 Bricks is designed for high-capacity fly ash brick production in Coimbatore. Engineered for precision and efficiency, it ensures the consistent stacking of 15 bricks per cycle, helping manufacturers optimize productivity while maintaining superior quality. Equipped with advanced PLC control, hydraulic systems, and a twin turbo pump, this stacker delivers automated, accurate handling with minimal manual effort. Its robust construction ensures long-term durability and reliable performance, making it an essential component for modern automatic brick manufacturing plants. Built with precision engineering and heavy-duty design, the system integrates seamlessly with 15-brick fly ash machines. This guarantees smooth pallet operation, reduced downtime, and a streamlined workflow, enabling manufacturers to achieve higher production efficiency. Ideal for contractors, builders, and brick machine suppliers across Tamil Nadu, the 15 Bricks Auto Pallet Stacker is perfect for industrial-scale applications, commercial construction, and large-scale infrastructure projects. Its combination of automation, high performance, and durability makes it a trusted choice in the industry. Choosing the Auto Pallet Stacker System – 15 Bricks means investing in a reliable, high-capacity solution that improves productivity, ensures uniform stacking, and supports large-scale brick manufacturing operations. It is the preferred choice for businesses aiming for efficiency and consistent quality output

Technical Specification

MODEL ABMH 8SP SUPER ULTRA AUTO STACKER PALLET 12 Bricks System
Hydraulic Motor 15 H.P/11.25 KW
Heat Exchanger 1H.P/0.75KW
Conveyor System 3 H.P/2.25 KW
Pan mixer Machine 20 H.P/15 KW
Hopper Vibrator 0.5 H.P/ 0.375 KW
Stacker Hydraulic Motor 3 H.P/2.25 KW
Stacker travel motor 3H.P/2.25 KW
Pallet Chain Conveyor 1 H.P/0.75 KW
System Hydraulic Free Fill
Dimension H-2800*W1500*L-2800
Weight Approx 9500 KG
Control PLC
Pallet Dimension 20*750*850
Sliding Rod 63 EN8 Grained Hard Chromed
Sliding Bush Steel Casting
No of Cylinders 7 no’s
Main Cylinder 200*350*160(Double)
Side Cylinder 70*50*350
Ejector Cylinder 50*35*1100
Max Pressure 220+220=440 BAR
Hydraulic Pump Turbo Twin Vain System
Cyclic time 15 Seconds
Ejector Conveyor Tough Polymer easy Changeable
No of Labour only For Production 12
Land 1.5 Acre
Shed 60’x 120’(Feet)
Water Equipment 15,000 Liters/Shift
